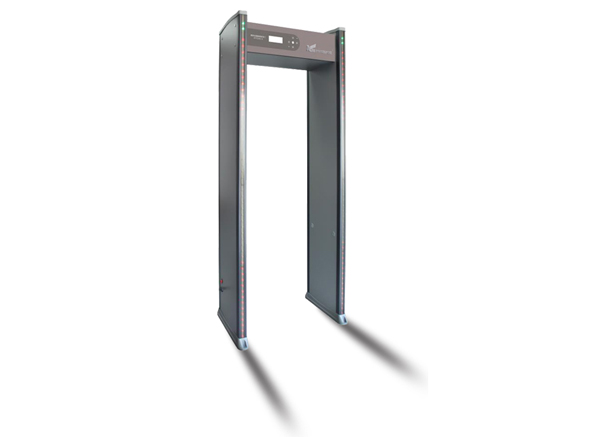

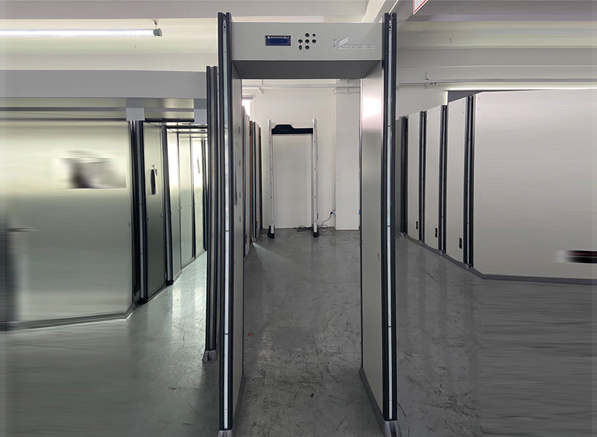

Walk through Temperature Detecting Door. It is used to check people have fever or not, especially under the current situation with COVID19 in most part of the world.
Application
Public places, such as stations, shopping mall, store, school, hospital, hotel, prison etc., for all building entrance.
Specification
*Standard External size:
2230mm(H) x835mm(W) x580mm(D) .
*Standard Internal size:
1990mm(H) x700mm(W) x500mm(D) .

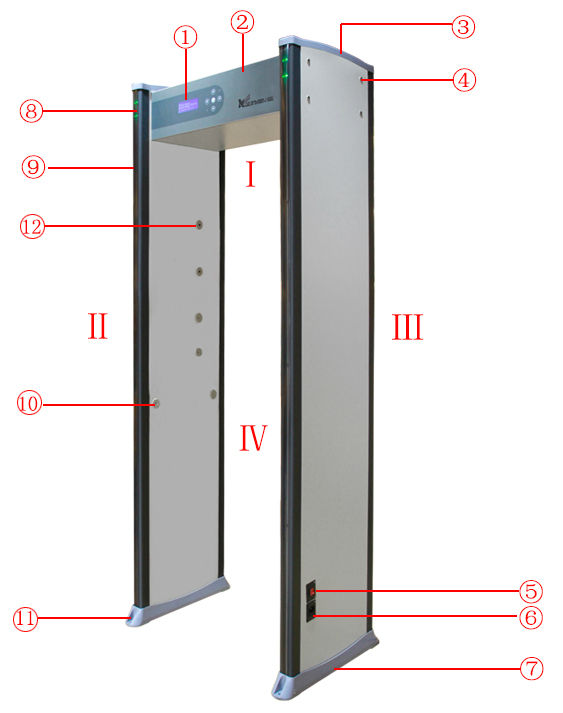

Illustration
ⅠControl Unit Case
Ⅱ Left Door Panel
Ⅲ Right Door Panel
Ⅳ Detecting Tunnel
(1) LCD Panel (2)Cover Plate (3)Top Seal (4) Screw (5)Power Switch
(6)Power Plug (7) Foot cover (8)Work light (9)Alarm Light
(10) Infrared Sensor (11) Fixed Screw Hole (12) Temperature Sensor
Features
1.Efficient non-contact temperature measurement system for epidemic fever.
2.Walk through body temperature detection with high accuracy of ±0.1°C.
3.Alarm: LED & volume indicators.
4.Safety temperature threshold with self-calibration.
5.Buzzer and LED alarm in case safety threshold is exceeded.
6.Low rate of false alarm with advance digital signal processing technology.
7.LCD screen display with infrared remote controller for setting programs.
8.Supports network software for real time monitoring and retrieving data (option).
Technical Data
Parameter | Specifications |
Power supply | AC85V~264V/50-60HZ |
Power consumption | ≤20W |
Accuracy | ±0.1°C |
Height of IR temperature sensor | 1.45m & 1.65m (standard) |
Alarm type | LED alarm & volume alarm |
Alarm zone | 1 zone |
LCD display | Passenger & Alarm No. and temperature |
Volume level | 0-255 steps |
Color | Grey & white |
Communication interface | RJ45 (for option) -support display on monitor |
Protection level | Password & hardware key |
Inner Size | 1990mm*700mm*500mm(H*W*D) |
Outer Size | 2230mm*835mm*580mm(H*W*D) |
Function Metal detection | for option (6/12/18zones) |
Package Size(2 cartons) | 820*480*260mm 2340*680*260mm |
Net Weight | 65kgs |
Gross Weight | 70kgs |
Working environment 1 | 15°C ~ +35 °C |
Working environment 2 | No direct sunlight |
Humidity | 0～95% non-condensing |
